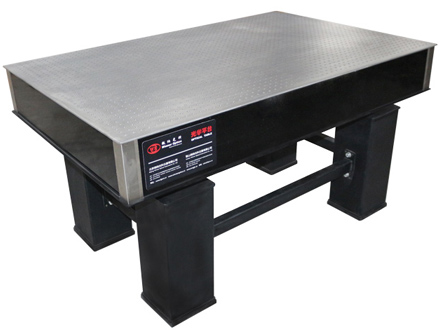

精密隔振光学平台：WN01VD

大型光学隔振平台，外框采用刚性强、变形小、焊接性能好的优质中碳钢板；隔振层利用固有频率低、阻振性能强的蜂窝结构材料，能很大限度控制振动的响应

立即咨询立即咨询

咨询电话：010-61509982

微信：13811284812邮箱：sales@bjwn.cn

产品详情

产品型号	长-宽-高	备注
WN01VD600x600x80	600-600-800	4支撑 M6螺孔孔距25mm
WN01VD750x750x80	750-750-800	4支撑 M6螺孔孔距25mm
WN01VD900x600x80	900-600-800	4支撑 M6螺孔孔距25mm
WN01VD1200x800x100	1200-800-800	4支撑 M6螺孔孔距25mm
WN01VD1500x1000x200	1500-1000-800	4支撑 M6螺孔孔距25mm
WN01VD1800x1200x200	1800-1200-800	4支撑 M6螺孔孔距25mm
WN01VD2000x1000x200	2000-1000-800	4支撑 M6螺孔孔距25mm
WN01VD2000x1200x200	2000-1200-800	4支撑 M6螺孔孔距25mm
WN01VD2000x1500x200	2000-1500-800	4支撑 M6螺孔孔距25mm
WN01VD2400x1200x200	2400-1200-800	4支撑 M6螺孔孔距25mm
WN01VD2400x1500x200	2400-1500-800	4支撑 M6螺孔孔距25mm
WN01VD3000x1000x300	3000-1000-800	6支撑 M6螺孔孔距50mm
WN01VD3000x1200x300	3000-1200-800	6支撑 M6螺孔孔距50mm
WN01VD3000x1500x300	3000-1500-800	6支撑 M6螺孔孔距50mm
WN01VD3500x1200x300	3500-1200-800	6支撑 M6螺孔孔距50mm
WN01VD3500x1500x300	3500-1500-800	6支撑 M6螺孔孔距50mm
WN01VD4000x1500x300	4000-1500-800	6支撑 M6螺孔孔距50mm
WN01VD4500x1500x300	4500-1500-800	6支撑 M6螺孔孔距50mm
WN01VD5000x1500x300	5000-1500-800	8支撑 M6螺孔孔距50mm
WN01VD6000x1500x300	6000-1500-800	8支撑 M6螺孔孔距50mm
WN01VD8000x1500x300	8000-1500-800	8支撑 M6螺孔孔距50mm
特点： ⊕大型光学隔振平台，外框采用刚性强、变形小、焊接性能好的优质中碳钢板 ⊕隔振层利用固有频率低、阻振性能强的蜂窝结构材料，能很大限度控制振动的响应 ⊕面板采用高导磁不锈钢板，精磨后具有实用、美观和耐磨等特点 ⊕隔振支架采用复合材料，固体阻尼隔振，结构稳固可靠，适用于环境震动良好的实验场所 ⊕调节支撑部分采用耐磨丝杆和平面推力球轴承，使用时轻松可靠 ⊕平面度：< 0.05mm/600mm*600mm ⊕表面粗糙度：0.8μm～1.6μm ⊕固有频率：＜3~8Hz,与负载和实际使用情况相关 ⊕振幅：< 5μm
